overview

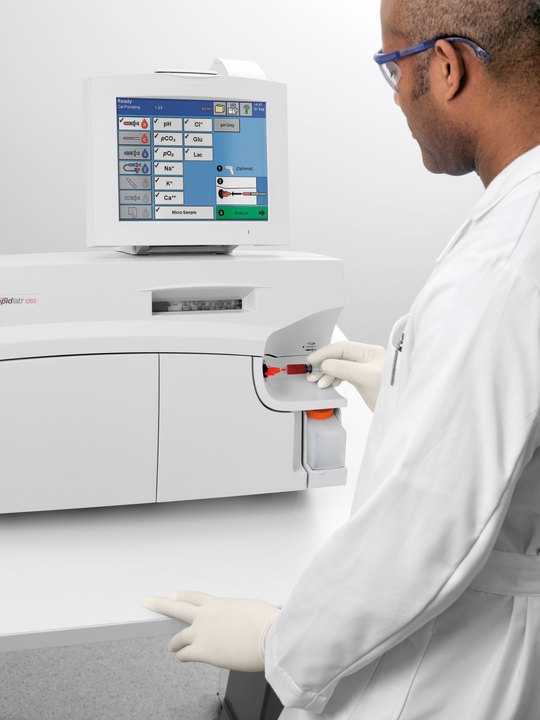

Designed to maximize turnaround time, RAPIDLab®1200 Systems have the capacity to enhance blood gas testing efficiency in the clinical laboratory by combining testing speed and reliability with low maintenance. RAPIDLab 1200 systems are our proven solution for high-volume critical care testing sites.

Leverage the benefits of RAPIDLab 1200 Systems:

• Comprehensive test menu addresses a variety of critical care testing needs
• Intuitive operation and minimal maintenance help increase productivity without increasing staff.
• Industry-proven accuracy and reliability through long-life Ready Sensor® electrode technology
• Biosafe automatic sampling system with clot detection and clearance
• Effortless onboard Automatic Quality Control (AQC) for enhanced quality assurance and regulatory compliance

technical specifications

Sample Size:

Syringe (1 mL)/Capillary (Minimum)        RAPIDLab 1240       RAPIDLab 1245       RAPIDLab 1260       RAPIDLab 1265

pH Only                                                             35 µl                            35 µl                       95 µl                          95 µl

CO-oximetry Only                                             --                                100 µl                        --                             100 µl

Full Menu                                                        90 µl                              140 µl                    125 µl                        175 µl

Time to Results:                                          60 seconds

Reagent Cartridge Use Life:                         30 days

Wash Cartridge Use Life:                              Sample dependent

AQC Cartridge Use Life:                               28 days

1 point Calibration                                        Every 30 minutes

Full Cal Calibration                                        Every 8 hours

Temperature:                                                15°C-32°C

Humidity:                                                     5%-85% non-condensing

Width:                                                          58.4 cm (23.0 in.)

Height:                                                         57.2 cm (22.5 in.)

Depth:                                                         55.9 cm (22 in.)

Weight:                                                        29.5 kg (65 lb)

Rating:                                                        150VA

Voltage:                                                      100-240V

Frequency:                                                   50/60Hz

External Interfaces

USB Printer Port, RS232 Port, Bar Code Scanner Port, RJ10/100 Base T Ethernet Port
